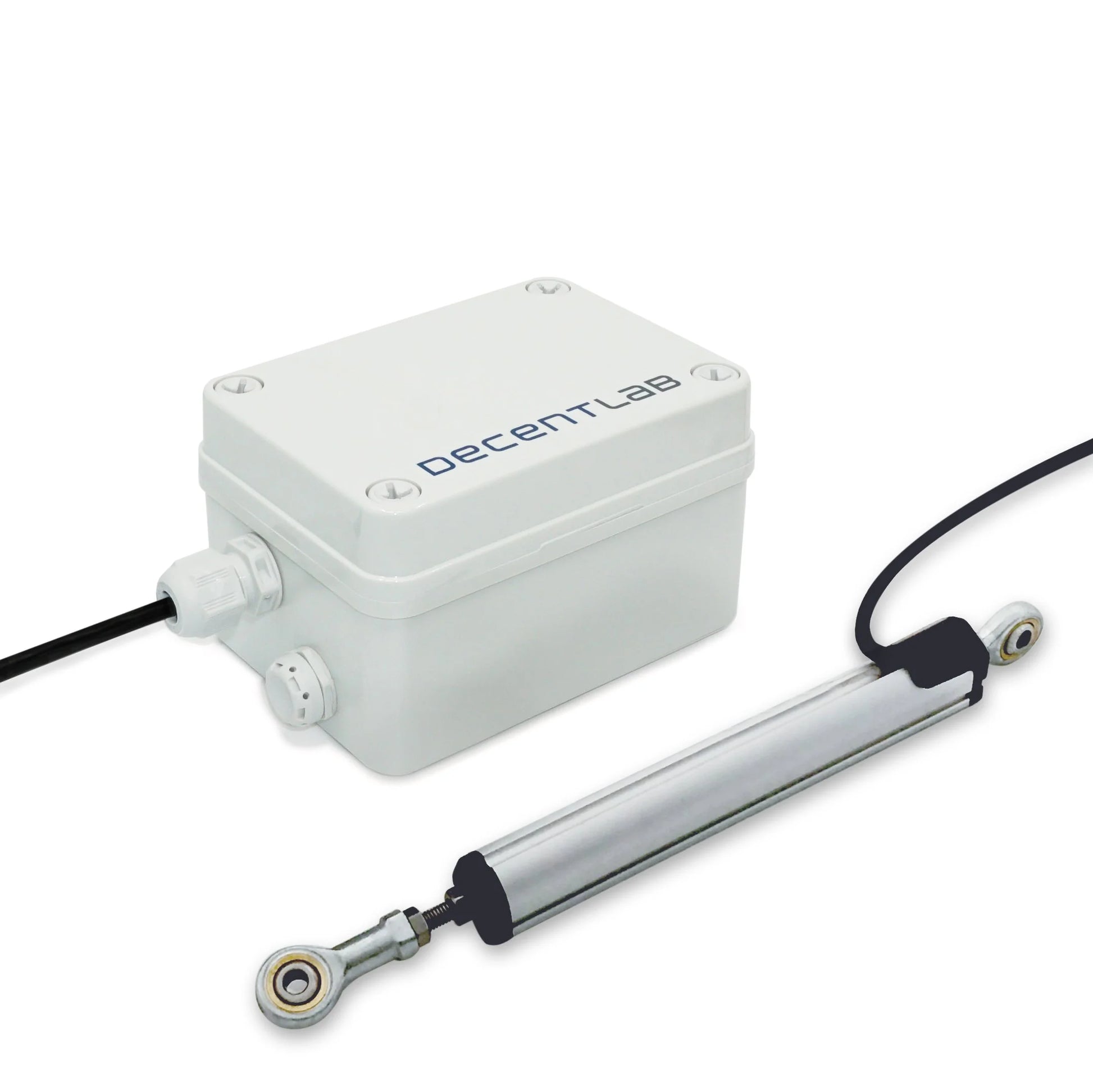

DecentLab Linear Position / Way Sensor 0.03 µm Crack Displacement

High-Precision Displacement and Structural Monitoring

The DecentLab Linear Position / Way Sensor is a state-of-the-art device designed for precise measurement of linear displacement and movement. Ideal for monitoring cracks, terrain shifts, environmental changes, and structural health, this sensor provides reliable, real-time data to support safety and maintenance decisions in industrial and environmental applications.

Applications

• Crack measurement and structural health monitoring
• Displacement and terrain movement tracking
• Monitoring environmental changes
• Bearing position and mechanical movement analysis

Sensor Specifications

• Measurement range: 0 to 100,000 µm (with custom ranges up to 2000 mm available)
• Ultra-high resolution of < 0.03 µm for precise displacement detection
• Accuracy: 0.2% ensuring reliable and consistent measurements

Device Features

• LoRaWAN® Class A for low-power, long-range wireless communication
• Powered by 2 C alkaline batteries enabling years of maintenance-free operation
• Compact and rugged design: 13.5 cm × 8.1 cm × 7 cm (excluding sensor)
• Custom sensor lengths and mounting options available upon request

DecentLab is a Swiss company headquartered at Kriesbachstrasse 30, Dübendorf, Zurich, founded in 2008 as a spin-off from Empa (Swiss Federal Laboratories for Materials Science and Technology).

Official Product Page

Shipping fee: @US$50/HK$400

Lead-time: 10-20 days
