Milesight WT30x LoRaWAN Smart Fan Coil Thermostat Series
Milesight WT30x LoRaWAN Smart Fan Coil Thermostat Series
Regular price
HK$1,380.00
Regular price
Sale price
HK$1,380.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

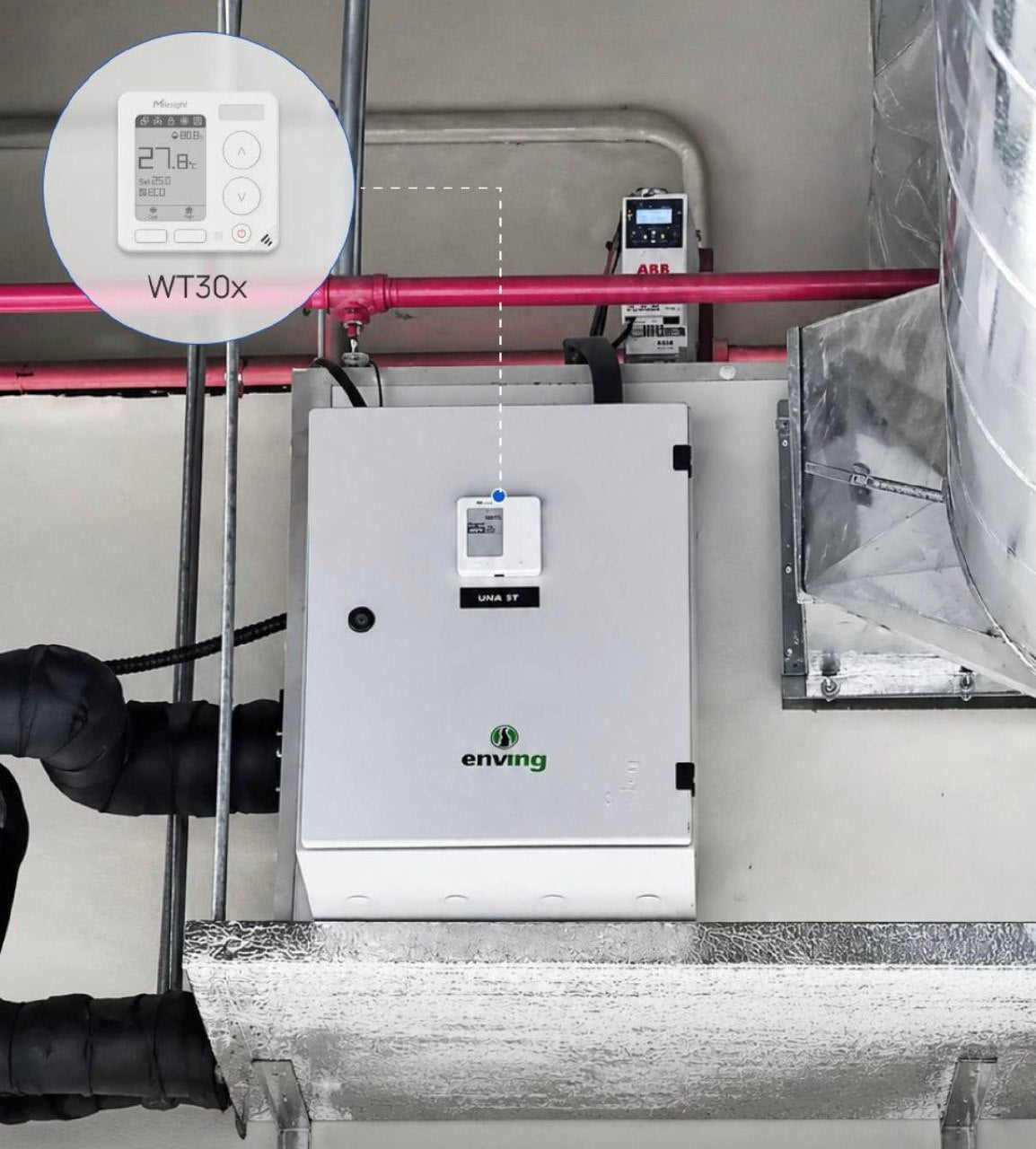

Milesight WT30x — LoRaWAN Smart Fan Coil Thermostat
WT30x is a LoRaWAN smart fan coil thermostat compatible with 2-pipe and 4-pipe FCUs. A perfect fit for commercial HVAC systems, it supports efficient FCU retrofits and enables centralized climate management with measurable energy savings.
Key Features
- LoRaWAN wireless connectivity for remote monitoring and control
- High accuracy ±0.5°C temperature regulation
- LCD screen with four-color LED and capacitive touch buttons
- 5+1+1 six-period programmable scheduling
- Clock display, keycard switch input, external NTC sensor input
- Window-open detection for energy savings
- Freeze protection mode
- 12cm ultra-thin embedded panel, frameless design
- Fits 86mm square box & European 60mm round box
- Power supply: 95~240 VAC, 50/60Hz
Model Comparison
| Feature | WT301 | WT302 | WT303 | WT304 |
|---|---|---|---|---|
| FCU Pipe System | 2-Pipe only | 2-Pipe only | 2-Pipe & 4-Pipe | 2-Pipe & 4-Pipe |
| Valve Control | On/Off Relay (2-wire) | 0-10V Proportional | 2-Wire On/Off | 0-10V Proportional |
| Fan Type | 3-Speed AC Fan | 3-Speed AC Fan | 3-Speed AC Fan | 3-Speed AC + EC Fan |
| Fan Relay Rating | 5A/3A | 5A/3A | 5A/3A | 5A/3A |
| Valve Relay Rating | 3A/1A | — (0-10V) | 3A/1A | — (0-10V) |
| 0-10V Valve Range | — | ✓ Adjustable | — | ✓ Adjustable 0-100% |
| EC Fan Config | — | — | — | ✓ Low/Med/High % |
| Temperature Modes | Cool/Heat/Vent | Cool/Heat/Vent | Cool/Heat/Vent | Cool/Heat/Vent |
| Fan Modes | Auto/High/Med/Low | Auto/High/Med/Low | Auto/High/Med/Low | Auto/High/Med/Low |
| Window Detection | — | — | ✓ | ✓ |
Job Reference — Novotel Hotel, France
BMS Modernization: Milesight WT303 Smart Fan Coil Thermostats replaced legacy guest-room controllers by integrating temperature sensing, fan coil control, and LoRaWAN communication into one device.
