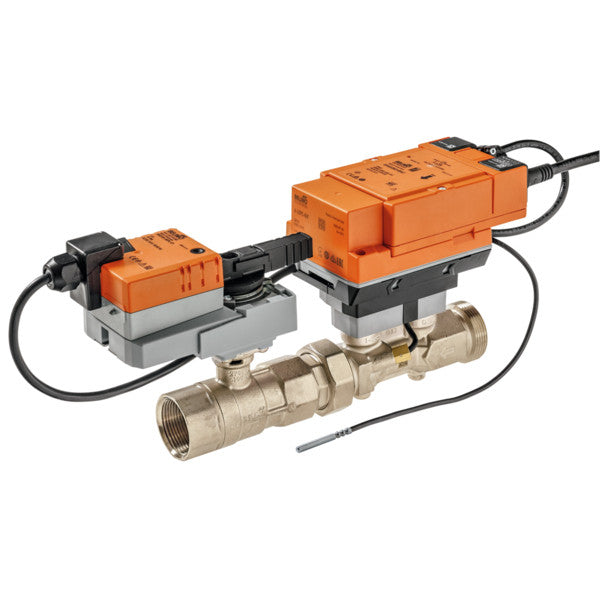

Belimo Energy Valve 2-way PICCV 15mm 24V BACnet MOD/ON/OFF EV015R2+BAC

The BELIMO EV050R2+BAC is a cutting-edge electr. 2-way PI-CCV Belimo Energy Valve that offers both precision and efficiency. Designed for optimal performance, this valve operates on AC/DC 24 V and is equipped with BACnet IP, BACnet MS/TP, Modbus TCP, Modbus RTU, and MP-Bus communication capabilities.

AC/DC 24 V, BACnet IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, DN 15, Internal and external thread, Rp 1/2"G 3/4", PN 25, ps 1600 kPa, max flow rate 0.42 l/s, Fluid temperature -10...120°C.

IP40, IP54 when using protective cap or protective grommet for RJ45 socket.

Width: 38.00 (cm)

Height: 13.00 (cm)

Depth: 57.50 (cm)
